Products Clamping Systems PM Tooling Die-plate pallet PM190 ø 141 Multi
ER-057192

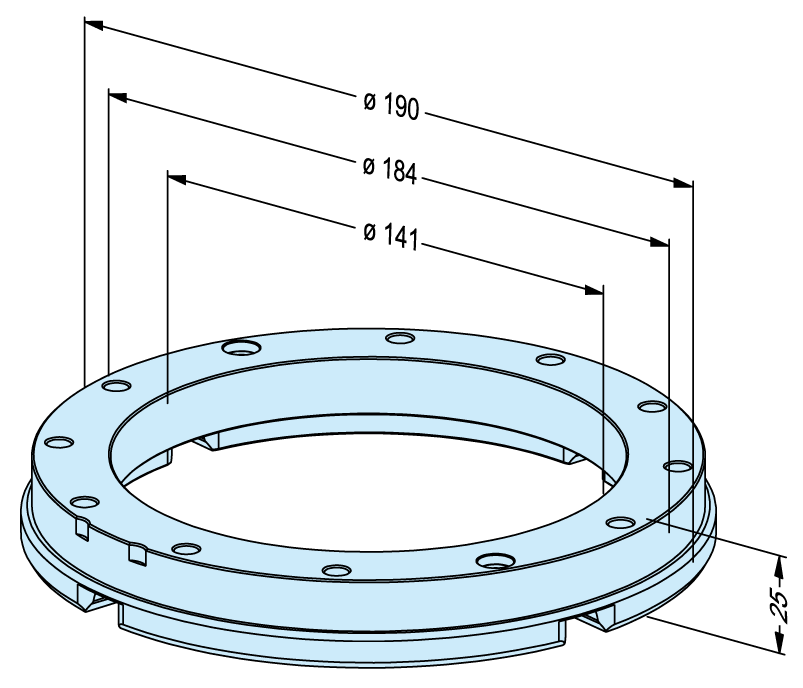

Die-plate pallet PM190 ø 141 Multi

1 piece

Technical data

Technical data for Die-plate pallet PM190 ø 141 Multi
Technologies
EDM sinking
EDM sinking
WEDM
WEDM
Chip-removing processes
Chip-removing processes
Applications
Manual Operation
Manual Operation
With central flushing clearance
With central flushing clearance
Corrosion-resistant material
Corrosion-resistant material

Downloads

User Manual

Further information

Description
Steel, hardened, corrosion-resistant. Centering integrated in pallet. Inside ø 141.
Mounting Interface
For use on die-plate chuck PM190 Multi. To accommodate die plates, workpieces and fixtures for chip-cutting machines, EDM/WEDM centers and powder presses.
Mounting
Through the pallet with 12xM6 bolts.
