Products Clamping Systems PM Tooling Die-plate Chuck PM128 II AirDock
ER-073369

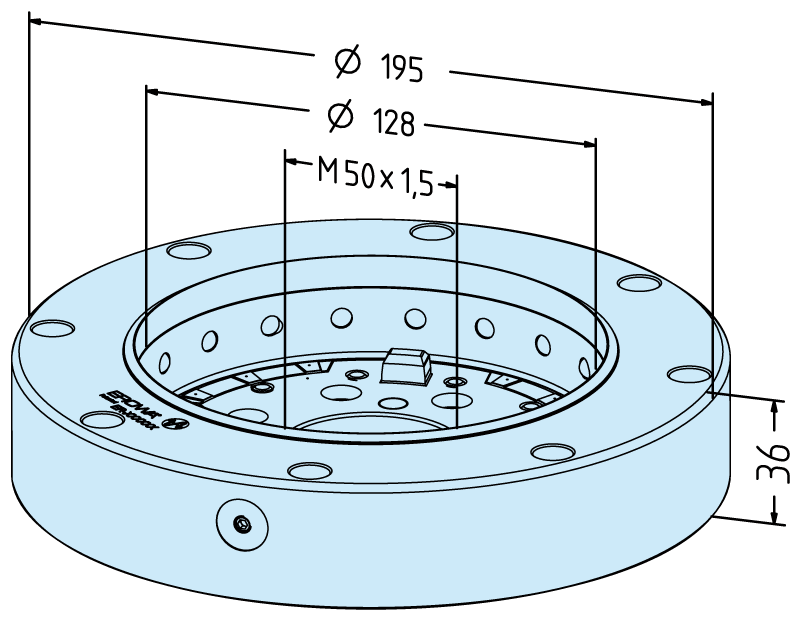

Die-plate Chuck PM128 II AirDock

Technical data

Technical data for Die-plate Chuck PM128 II AirDock
Number of lines min. 1 (opening) | Optional: + 1 (for reclamping)
Operation With control unit or compressed air gun
Indexing 4 x 90°
Reclamping Optional
Opening pressure 6 bar pneumatic
Repeatability < 0.002 mm
Clamping mechanism Spring force, clamped without pressure
Permissible pull-out force 70 kN
Permissible pressing force 1'000 kN
Technologies
EDM sinking
EDM sinking
Chip-removing processes
Chip-removing processes
Applications
Operate with compressed air jet
Operate with compressed air jet
Operate using the manual control unit
Operate using the manual control unit
Operate using the electropneumatic control unit
Operate using the electropneumatic control unit
With central flushing clearance
With central flushing clearance
Suitable for automated use
Suitable for automated use

Downloads

User Manual

Further information

Description
Hardened steel. Through hole: ø 48 mm. Outside seal. Positioning ring, including 2 AirDock valves. Max. speed 4,000 min-¹.
Clamping Force
23,000 N (reclamped at 6 bar).
Connections
At the rear through customized base plate, flange or rotatable pneumatic connector (not supplied with this unit).
Operation
With compressed-air gun, control unit or through the machine control unit.
Mounting Interface
On dividing heads, indexing tables, lathes and circular grinding machines. To accommodate adapter chuck, die-plates PM128 and customer-specific jigs.
