ER-059596

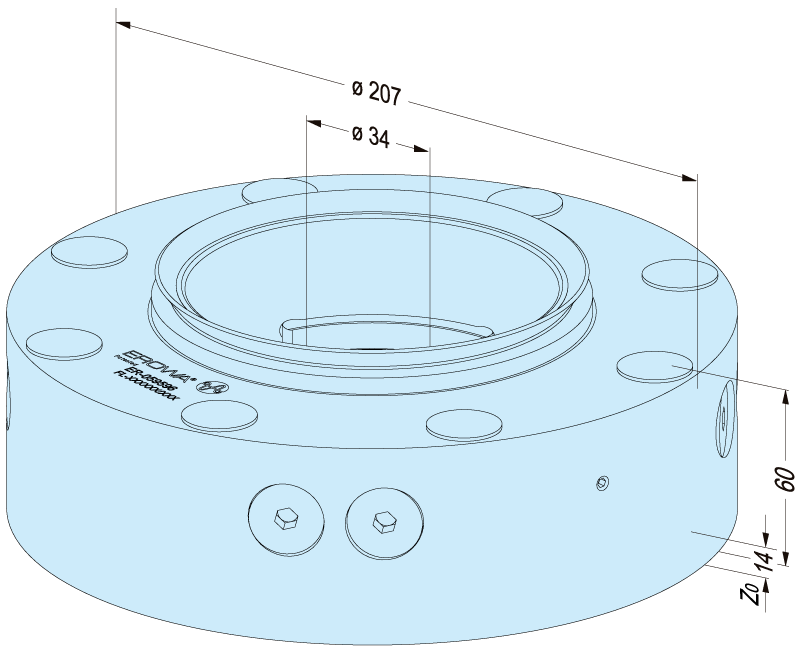

Chuck PM105 Hercules
Technical data
| Number of lines | min. 1 (opening) | Optional: + 1 (for reclamping) |
|---|---|
| Operation | With control unit or compressed air gun |
| Indexing | 4 x 90° |
| Reclamping | Optional |
| Opening pressure | 6 bar pneumatic |
| Repeatability | < 0.002 mm |
| Clamping mechanism | Spring force, clamped without pressure |
| Permissible pull-out force | 300 kN |
| Permissible pressing force | 1'500 kN |
| Technologies |
Chip-removing processes
|
| Applications |
Manual Operation
Operate using the manual control unit
Operate using the electropneumatic control unit
With central flushing clearance
|
