Products Clamping Systems PM Tooling Alignment pallet PM85 Precise
ER-042440

Alignment pallet PM85 Precise

Technical data

Technical data for Alignment pallet PM85 Precise
Technologies
EDM sinking
EDM sinking
WEDM
WEDM
Chip-removing processes
Chip-removing processes
Applications
Corrosion-resistant material
Corrosion-resistant material

Downloads

User Manual

Further information

Description

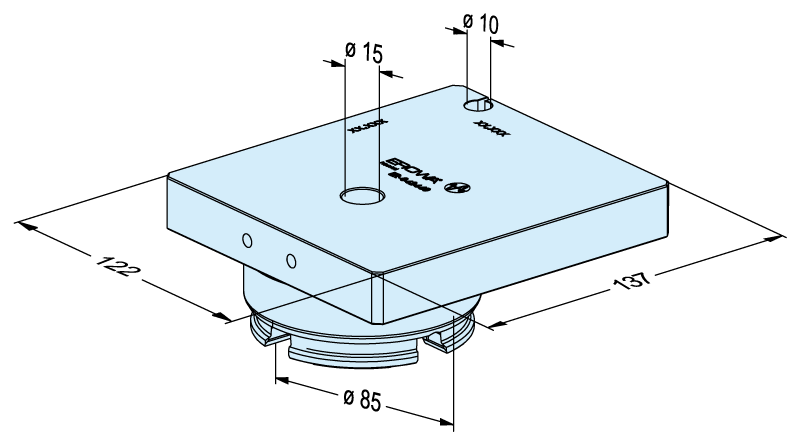

Steel hardened, corrosion-resistant. Ground alignment surface, center borehole ø 15 and position borehole ø 10.
Mounting Interface
In tool- and mold-making. Alignment of the angle position and determination of the center of PM85 Precise chucks.
Back to overview
