ER-042350

Alignment pallet PM56 / PM60 Precise

Technology

EDM Sinking
EDM Sinking
Wire-EDM sinking
Wire-EDM sinking
Chip removing
Chip removing

Applications

INOX
INOX

Downloads

Further information

Description

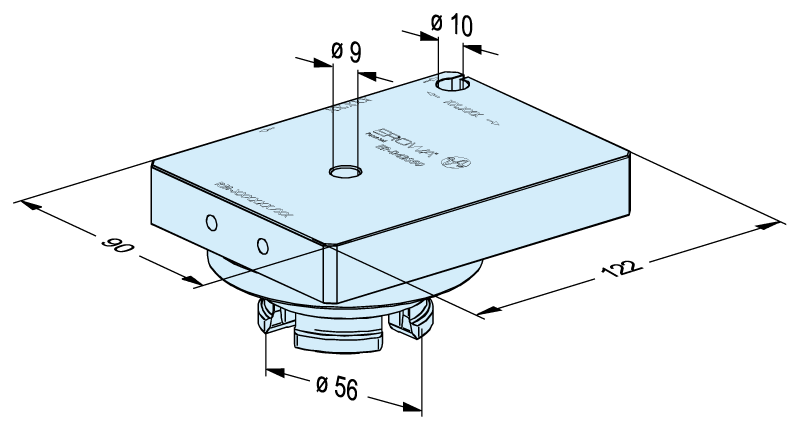

Steel hardened, corrosion-resistant. Ground alignment surface, center borehole ø 9 and position borehole ø 10.
Mounting Interface
In tool- and mold-making. To align the angular position and to determine the center of PM56 and PM60 Precise chucks.
