Products Clamping Systems PM Tooling Alignment pallet PM128 Precise
ER-049248

Alignment pallet PM128 Precise

for die-plate chuck PM128 Precise

Technical data

Technical data for Alignment pallet PM128 Precise
Technologies
EDM sinking
EDM sinking
WEDM
WEDM
Chip-removing processes
Chip-removing processes
Applications
Corrosion-resistant material
Corrosion-resistant material

Downloads

User Manual

Further information

Description

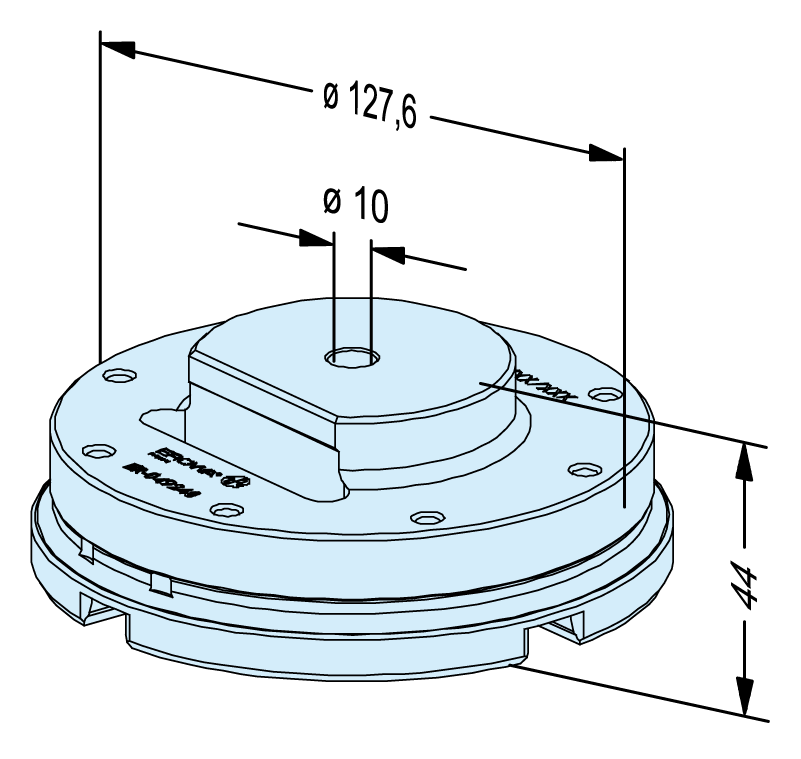

Steel hardened, corrosion-resistant. Ground alignment surface and centering borehole ø 10.
Mounting Interface
In tool- and mold-making. For alignment of the angle position and determination of the center of the die-plate chuck PM128 Precise.
