ER-032964
ProductionChuck 210
without base plate
Technical data
| Number of lines | min. 1 (opening) |
|---|---|
| Operation | With control unit or compressed air gun |
| Indexing | 4 x 90° |
| Reclamping | Not available |
| Opening pressure | 7.5 bar pneumatic |
| Repeatability | < 0.002 mm |

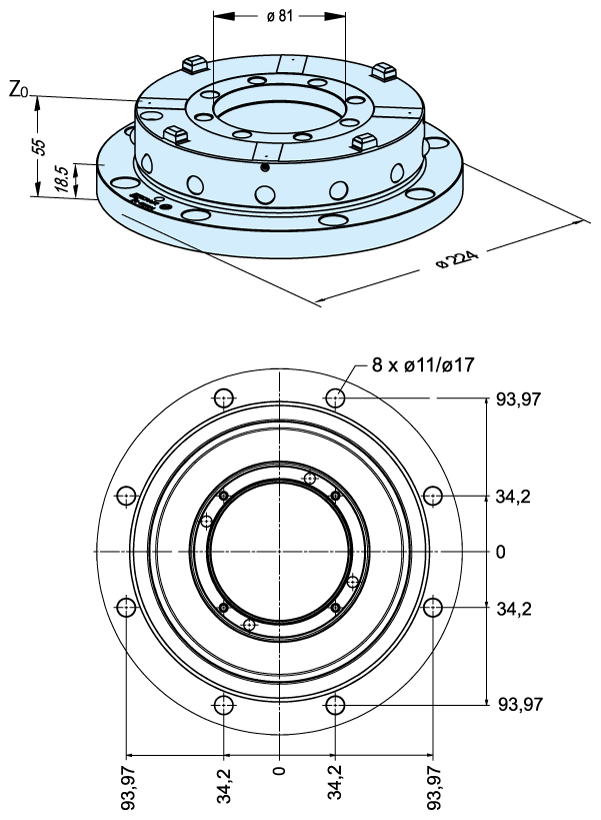

| Chuck dimensions | ø 224 x 55 mm |
| Clamping power | 20'000 N |
| Clamping mechanism | Spring force, clamped without pressure |
| System height (chuck and pallet) | 80 mm |
| Workpiece size | up to 400 x 400 x 400 mm |
Technology
EDM Sinking
Chip removing
Applications
Manual Control Unit
Electropneumatic Control Unit
Submerged
Auto
