ER-046474

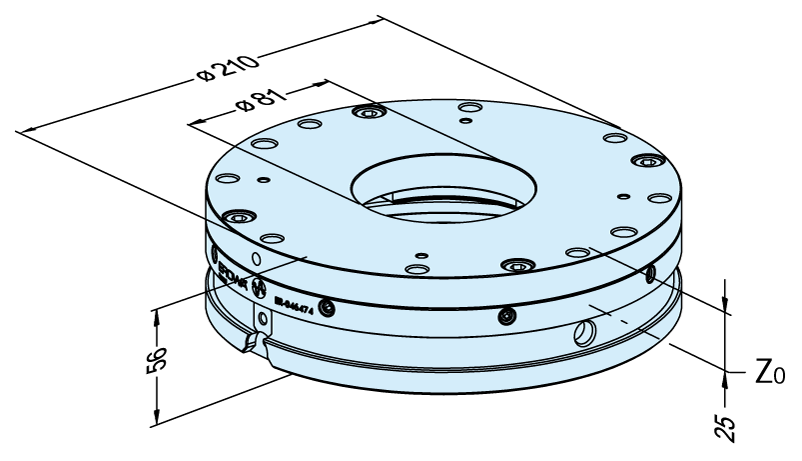

Pallet RN PC 210 ø 81

Technical data

Technical data for Pallet RN PC 210 ø 81
Compatible chucks PC 210 | PC 210 Combi
Workpiece size up to 400 x 400 x 400 mm
Workpiece identification EWIS™ Rapid

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Manual
Manual
Auto
Auto
Gripper RN PC 210
Gripper RN PC 210

Further information

Description
Steel. Centering segments integrated.
Through borehole ø 81 mm.
Mounting
8 x M10 attachment threads and two
ø 10 boreholes.
Mounting Interface
To accommodate workpieces, clamping jigs and
plates PC 210.
Can be automated with gripper RN PC 210 (Option).
