ER-041694

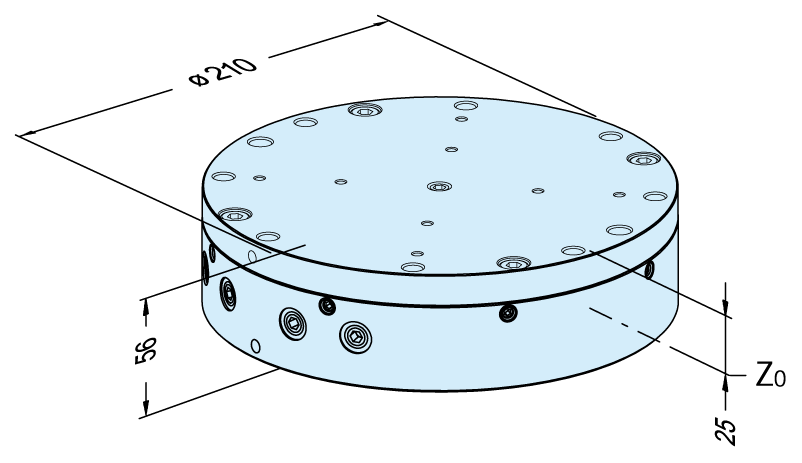

Pallet PC 210

Technical data

Technical data for Pallet PC 210
Compatible chucks PC 210 | PC 210 Combi
Workpiece size up to 400 x 400 x 400 mm
Workpiece identification EWIS™ Rapid

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Manual
Manual
Auto
Auto
Gripper RCS
Gripper RCS

Downloads

Further information

Description
Steel. Centering segments integrated.
Mounting
8 x M10 attachment threads and two
ø 10H7 boreholes.
Mounting Interface
To clamp workpieces, clamping jigs and pallets PC 210.
Can be automated with GripperLink RCS PC 210, ER-043195 (option).
