Support
Products Clamping Systems CleverClamp & ClampSet Support 46
ER-099232

Support 46

CleverClamp

Technical data

Technical data for Support 46
Optional accessories Clamping jaws in various designs | Underlays at different heights

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Downloads

User Manual

Further information

Description

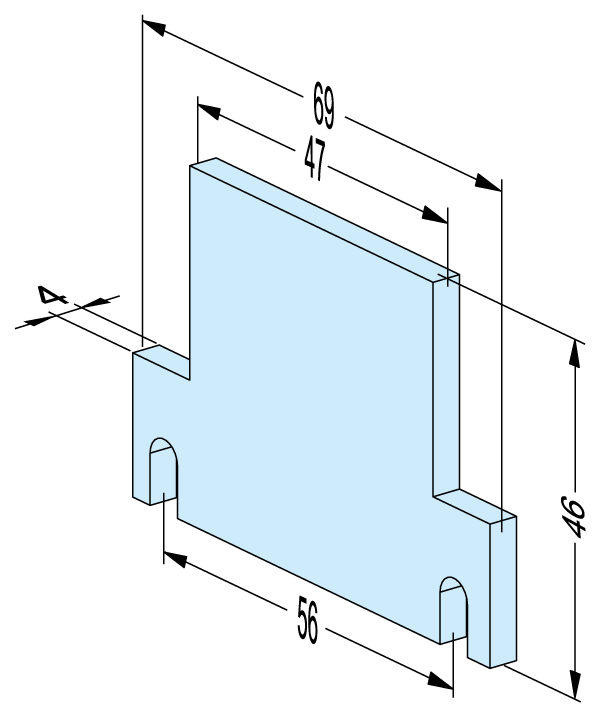

Steel, hardened, width 47mm, height 46mm.
Mounting Interface
Ground support for setting the workpiece clamping height between the CleverClamp clamping and stop elements.
Note
Supports of the heights 34, 39, 44 and 46 can only be used in combination with the 5-axis clamping and stop elements.
