Products Clamping Systems CleverClamp & ClampSet Stop 5X Stamp Wide
ER-099258

Stop 5X Stamp Wide

CleverClamp

Technical data

Technical data for Stop 5X Stamp Wide
Optional accessories Clamping jaws in various designs | Underlays at different heights

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Downloads

User Manual

Further information

Description

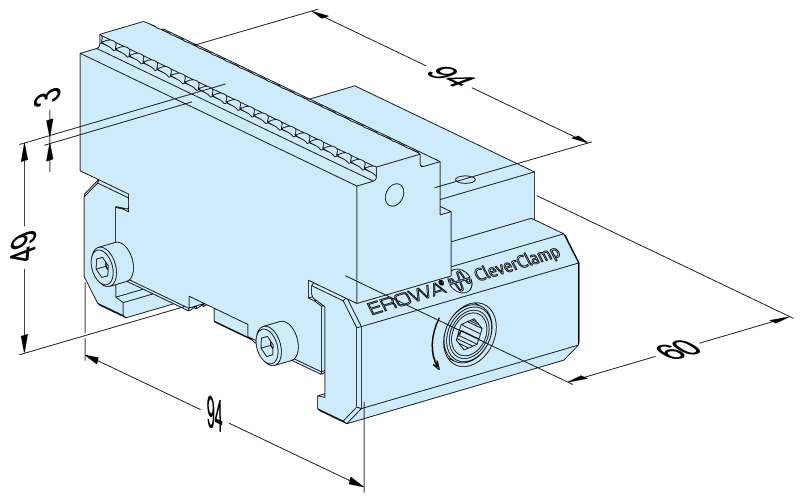

Steel, hardened, width 94mm, height 49mm, with stamp countours.
Mounting Interface
Stop element in the modular CleverClamp system. Stop element with better machine spindle accessibility for 5-axis applications. With stamp countours, ideal in combination with stamp clamping elements for clamping blanks at a minimum clamping height of 3mm.
Installation
On CleverClamp rail.
