Products Clamping Systems CleverClamp & ClampSet Rail 398 H80
ER-100266

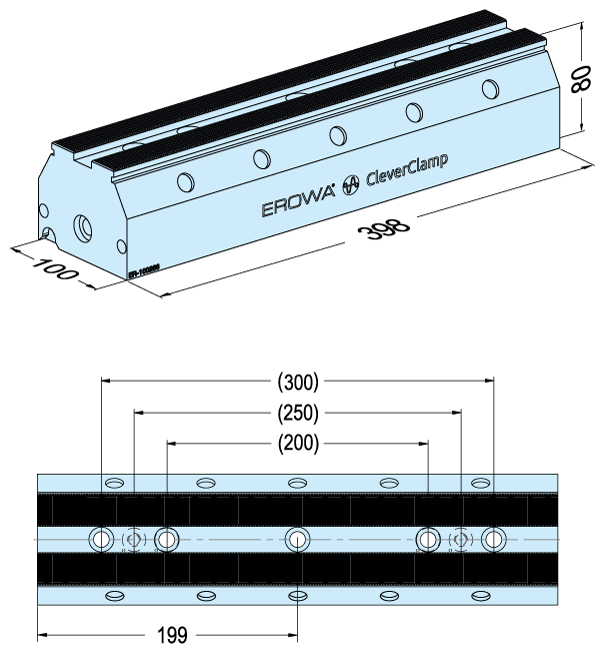

Rail 398 H80

CleverClamp

Technical data

Technical data for Rail 398 H80
Optional accessories Clamping jaws in various designs | Underlays at different heights

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Manual
Manual

Downloads

User Manual

Further information

Description
Steel, hardened. H80 clamping element carrier with 2mm positioning grid.
Mounting Interface
Serves as a base to clamp workpieces with various CleverClamp clamping and stop elements.
Installation
To fit on R50 grid plates, pallets, tombstones and machine tables.
Accessories
Clamping and stop elements, etc.
Note
Can be used directly with a spigot on MTS, 200mm set-up distance (A/M) or 250mm set-up distance (A/M).
