Products Clamping Systems CleverClamp & ClampSet Rail 398 H60 manual
ER-099389

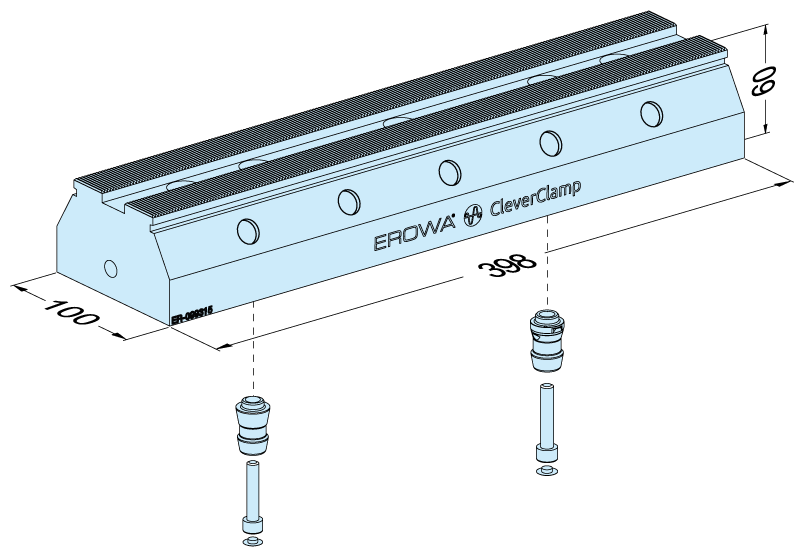

Rail 398 H60 manual

CleverClamp

Technical data

Technical data for Rail 398 H60 manual
Optional accessories Clamping jaws in various designs | Underlays at different heights

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Manual
Manual

Downloads

User Manual

Further information

Description
Steel, hardened. H60 clamping element carrier with 2mm positioning grid. With MTS spigot, Manual.
Operation
Manual application on MTS base plates with 200/250mm set-up distance.
Mounting Interface
Serves as a basis to clamp workpieces with various CleverClamp clamping and stop elements.
Accessories
Clamping and stop elements, etc.
Note
Manual application.
