Products Clamping Systems CleverClamp & ClampSet Rail 320 H60
ER-099314

Rail 320 H60

CleverClamp

Technical data

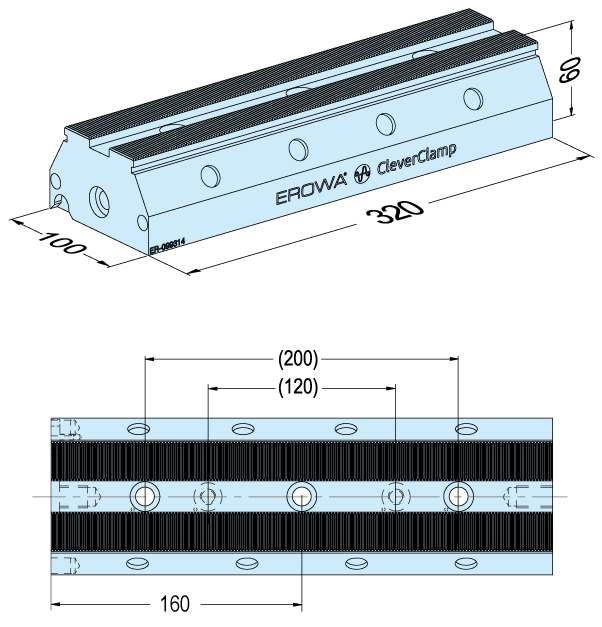

Technical data for Rail 320 H60
Optional accessories Clamping jaws in various designs | Underlays at different heights

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Applications

Manual
Manual

Downloads

User Manual

Further information

Description
Steel, hardened. H60 clamping element carrier with 2mm positioning grid.
Mounting Interface
Serves as a base to clamp workpieces with various CleverClamp clamping and stop elements.
Installation
To mount on R50 grid plates, pallets, tombstones and machine tables
Accessories
Clamping and stop elements, etc.
Note
Can be used directly with a spigot on MTS, 200mm set-up distance (M) or MTS81, 120mm set-up distance (A/M).
