Rail 218 H35

CleverClamp

Technical data

Technical data for Rail 218 H35
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

Technology

Applications

Downloads

User Manual

Further information

Description

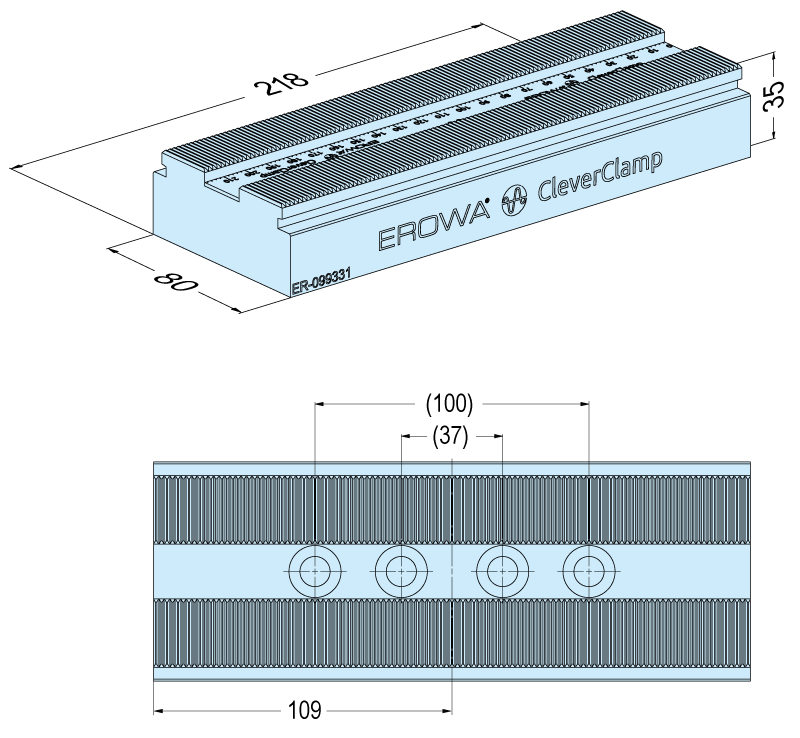

Steel, hardened. Clamping element carrier, length 218mm, height 35mm, with 2mm positioning grid.

Mounting Interface

Serves as a Basis to clamp workpieces with various CleverClamp clamping and stop elements.

Installation

To fit on grid plates R50, pallets, tombstones and machine tables. 4x M10 x35 socket head bolts.

Accessories

Clamping and stop elements, etc.

Note

Can be fitted directly to pallet P ø 148 Inox (ER-041912).
