Pull Down Slide Multi Flat

CleverClamp

Technical data

Technical data for Pull Down Slide Multi Flat
Optional accessories	Clamping jaws in various designs \| Underlays at different heights
Technologies	EDM sinking Chip-removing processes

Downloads

User Manual

Further information

Description

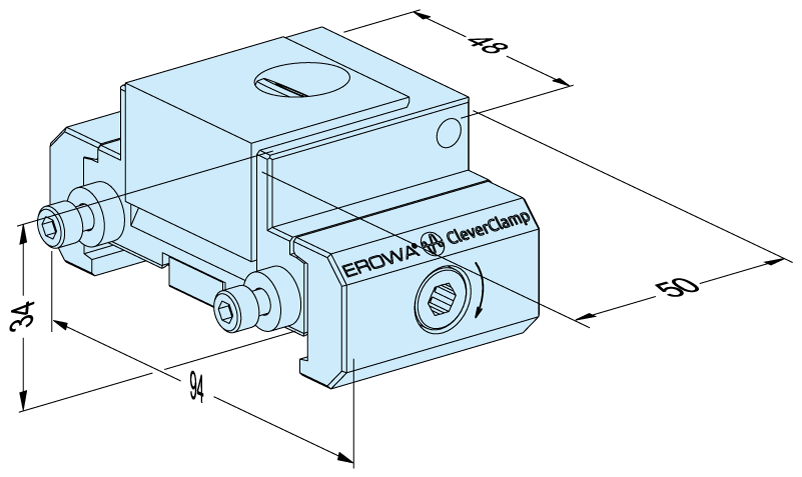

Steel, hardened, width 48mm, height 34mm, clamping and stop sides smooth.

Mounting Interface

Pull-down element for clamping jobs with high clamping forces. Surface: smooth. Ideal for two-side machining and for clamping workpieces with machined surfaces.

Installation

On a CleverClamp rail.

Note

Suitable for single or multiple fixtures.

Clamping Force

Up to 28kN max. at a torque of 40Nm max.

Clamping Stroke

Up to 4.1mm.

Back to overview
