Products Clamping Systems CleverClamp & ClampSet ClampSet base 220
ER-016010

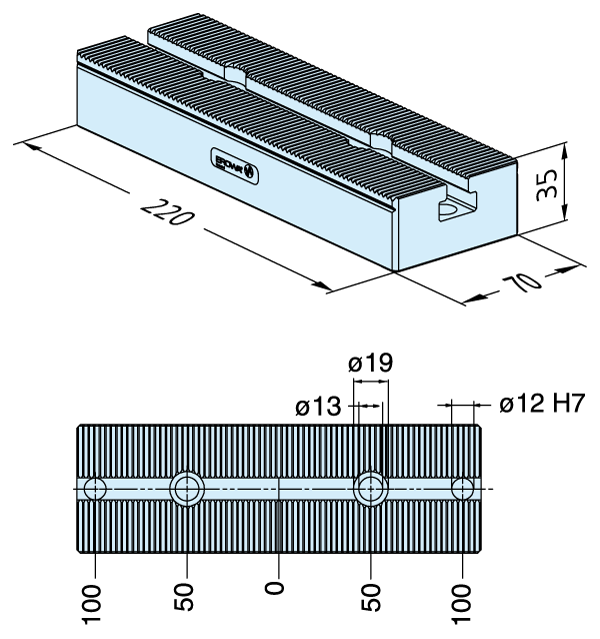

ClampSet base 220

Technical data

Technical data for ClampSet base 220
Clamping range 0 - 126 mm

Technology

EDM Sinking
EDM Sinking
Chip removing
Chip removing

Downloads

User Manual

Further information

Description
Steel, hardened, ground. Clamping element carrier with 3 mm positioning grid.
Mounting Interface
On ITS pallets 148 with 25 mm grid and on UPC pallets with 50 mm grid, as a base for the various ClampSet clamping jaws.
Installation
On all EROWA grid pallets.
Note
R40 subject to consultation.
