ER-075600

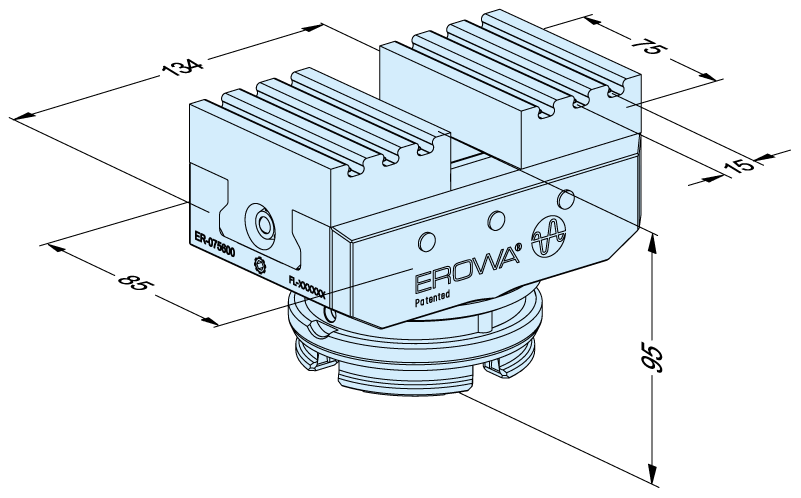

Self Centering Vise 85 P
Technical data
| Compatible chucks | ITS | PC 210 Combi | PM85 | PowerChuck P |
|---|---|
| Material | Stainless steel, hardened |
| Optional accessories | Torque wrench | ITS clamping spigot | Dirt cover for profiles | Clamping jaws in various designs | Underlays at different heights |
| Grid dimension Jaw positioning | 15 mm |
| Repeatability | < 0.01 mm |
| Clamping range | 5 - 95 mm |
| Clamping power | 14'000 N |
| Spindle and slider | Wear-free and low-maintenance |
| Technologies |
EDM sinking
Chip-removing processes
|
| Applications |
Manual Operation
Corrosion-resistant material
Suitable for automated use
|
