ER-070231

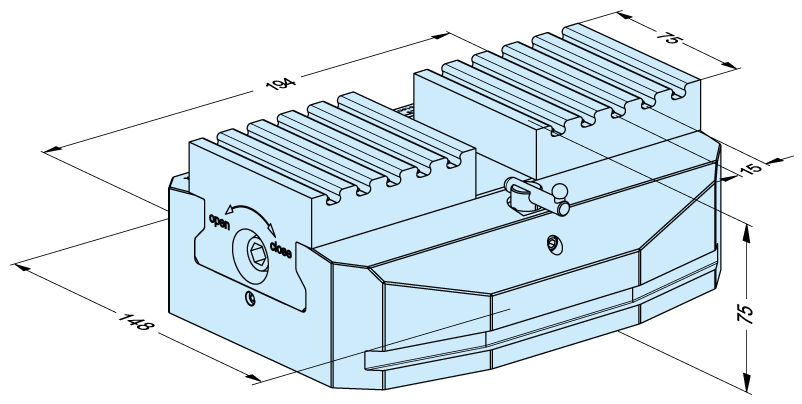

Self Centering Vise 148
without pallet
Technical data
| Compatible chucks | ITS | MTS Single Chuck | PC 210 Combi | PowerChuck P |
|---|---|
| Material | Stainless steel, hardened |
| Optional accessories | Torque wrench | ITS clamping spigot | MTS clamping spigot | Dirt cover for profiles | Clamping jaws in various designs | Underlays at different heights |
| Grid dimension Jaw positioning | 15 mm |
| Repeatability | < 0.01 mm |
| Clamping range | 5 - 155 mm |
| Clamping power | 19'000 N |
| Spindle and slider | Wear-free and low-maintenance |
Technology
EDM Sinking
Chip removing
Applications
Manual
INOX
