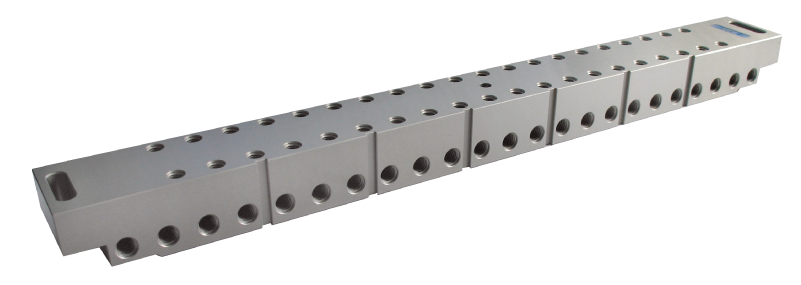

Clamping beam L = 460 / H36

The beams are accurate grinded and consist of hardened, corrosion-resistant, alloyed high-grade steel. The beams are furnished with clamping lips for the work piece clamping on one side and on the other side they can be clamped frontal. With the spacer plates 3 mm (FT 01439) the 3 mm high clamping lip can be lifted over the collision zone. On the beams without Z-support you can assemble the Z-discs (FT 01911) and the Z-0 base plate (FT 01906).

- 1 x beam
- 2 x FT 01439 spacer plate 60 x 20 x 3 mm
- 2 x countersunk screw corrosion-resistant M8 x 25 mm
- 2 x FT 01377 slide disc
