Compact, flexible automation for any manufacturing environment.

EROWA Robot Compact Family

The EROWA Robot Compact Family comprises two space-saving loading robots – the EROWA Robot Compact 80 and the EROWA Robot Compact 150. Both systems were developed to help manufacturing facilities automate CNC, EDM, WEDM, and measurement processes without requiring a large footprint or posing significant integration challenges.

Thanks to their modular magazines, precise gripper technology, and the ability to work with different pallet systems, the Robot Compact systems are ideal for workshops that want to remain flexible while significantly increasing their machine uptime.

With optional networking via EROWA JMS 4.0, jobs, pallets, and processes are digitally managed and documented. This makes the EROWA Robot Compact a central component of compact, efficient, and precise manufacturing cells.

Why the EROWA Robot Compact Family stands out:

  • Compact footprint: ideal for tight workshop spaces or retrofitting existing machines.
  • Modular magazine concept: plate and grid magazines can be flexibly combined, even for mixed loading.
  • High repeatability: precise transfer processes for consistent manufacturing results.
  • For different weight classes: from lightweight parts to medium-sized workpieces.
  • Wide pallet support: ITS, UPC, and PowerChuck P, MTS.
  • Easy integration: suitable for individual machines or complete automation cells.
  • Optional digital networking: with EROWA JMS 4.0 for transparent and traceable processes.
  • Future-proof solution: scalable from single cells to larger setups.
Directly to Products
To Product Brochure

EROWA Robot Compact 80 and 150

ideal for machining parts that change frequently

Automation is becoming more compact—while remaining flexible

Space is used efficiently

Various types of machines can be automated

(Milling, EDM, Wire EDM, Measuring,...)

Easy to use and quick to set up

A scalable, modular, and future-proof solution

Benefits and Features

可動式

ERC 80は空圧式で持ち上げられ、レールシステム上を移動します。これにより、機械へのアクセスが常に確保されます。移動ユニットはオプションとして後付け可能です。

使いやすさ

引き出し式のマガジン棚により、荷物の出し入れがスムーズに行えます。マガジン棚は、一体型のハンドルを使って引き出すことができます。

人間工学に基づいたローディングステーション

一体型ローディングステーション（オプション）により、大型で重量のあるワークピースを、人間工学的に適切な高さでマガジンに容易にセットできます。この間もロボットは問題なく稼働し続けます。

パレットサイズに応じた可変式マガジン段数

EROWA Robot Compact 80は、ワークピースのサイズに合わせて最大11種類の異なるEROWAパレットサイズを搬送します。マガジン段数は、要件に応じて正確に設定されます。

高性能かつ省スペース

2台の機械とEROWA Robot Compact 80を備えた生産セルは、わずかなスペースで設置可能です。設置面積はわずか2m²であり、機械の高い生産性と自律性を実現します。

最大150 kgの搬送重量

小型パレットや電極ホルダーに加え、長さ320 mmの大型UPCパレットや、搬送重量が最大80 kgまたは150 kgのMTS 400パレットも、機械に正確にセットされます。

EROWA Robot Compact 80

EROWA Robot Compact 150

Products

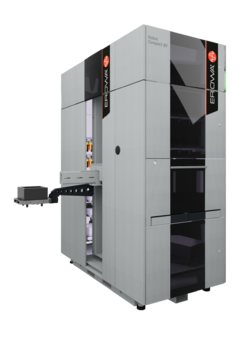

EROWA Robot Compact 80
ER-092000
さらに詳しく

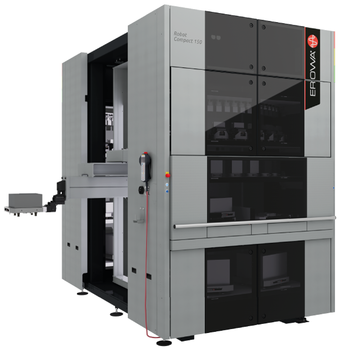

EROWA Robot Compact 150
ER-160000
さらに詳しく

EROWA Robot Compact 80 カタログ



EROWA Robot Compact 150 カタログ



FAQ – ERC Family

The ERC Family comprises compact, modular monoblock loading robots designed for automated machine loading. It was developed for flexible CNC manufacturing environments that require space-saving automation, high process reliability, and easy integration.

EROWA Robot Compact systems are compatible with milling, turning, EDM, measuring, and grinding machines from various manufacturers. Thanks to standardized interfaces, the systems can be integrated regardless of the machine type.

Up to 150 kg per position, depending on the system – scalable to meet specific requirements.

The ERC Family is designed for a variety of workpiece and pallet types. It can be combined with either EROWA ITS or MTS pallet systems, depending on the configuration and application.
